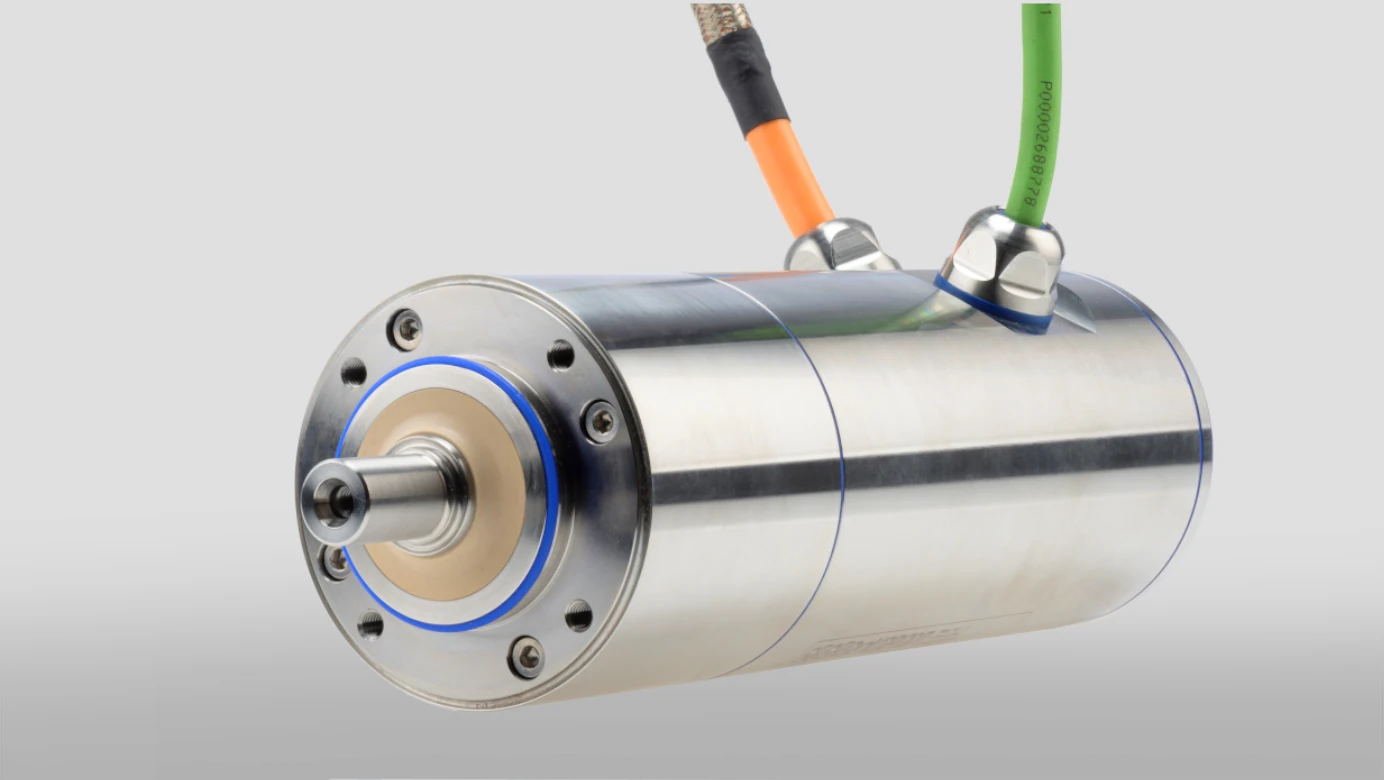

esiMot Hygienic

Description

The esiMot Hygienic is a decentralized stainless steel servomotor with integrated electronics and is available in various sizes.

Our stainless steel servo motors are designed for use in production environments with high standards for hygiene, corrosion protection, and cleanliness. Our engineers have adhered to EHEDG guidelines in their design.

Thanks to their smooth surface and sleek design, these IP69K drives are not only suitable for use in the food and beverage industry but also meet the requirements of the chemical and pharmaceutical industries. They are waterproof, corrosion-resistant, “washdown” 48 V servo motors with low self-heating (<60 °C at the housing).

esiMot Hygienic drives are designed to withstand high-pressure cleaning with acidic and alkaline industrial cleaning agents. They are CIP- and SIP-compatible and therefore “food safe.” They are available with cable glands and, optionally, with stainless steel connectors, and can be integrated with the common industrial fieldbuses PROFINET, EtherCAT, and CANopen*.
They are also available with planetary or bevel gearheads in a hygienic design.

• Rated power: <0.7 kW
• Rated torque: <3 Nm
• Motor power supply: 48 V DC
• Rated current: up to 30 A
• Protection rating: IP69K

*Under development; additional fieldbuses available upon request
