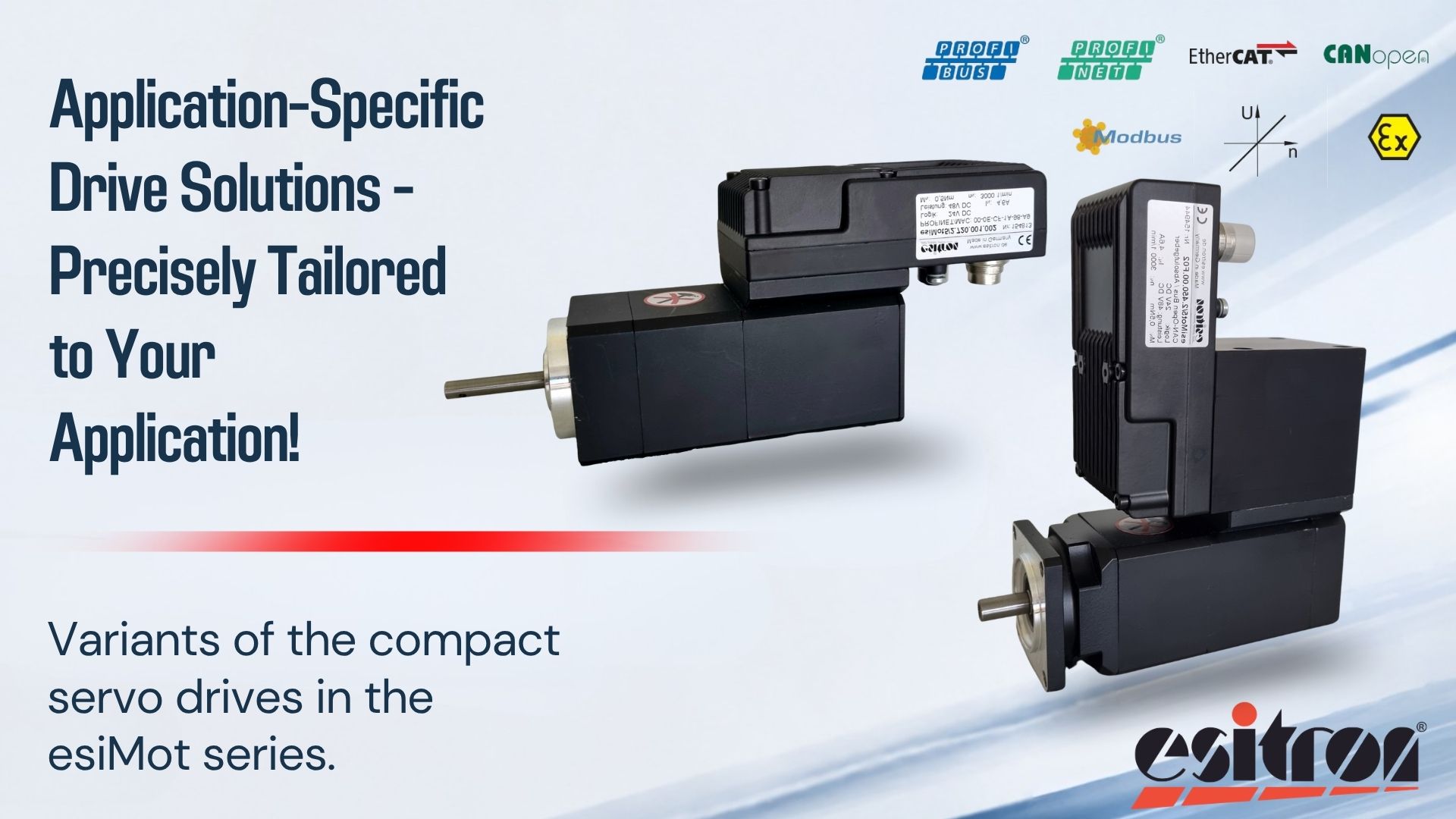

Servo motors with integrated electronics from esitron - the esiMot series
Since 1989, esitron has been a manufacturer of drive technology and motion control systems for automation.
Our brushless servomotors (also known as permanent magnet motors or PM motors) are wear-free and maintenance-free, feature high efficiency and high dynamic acceleration, and are very robust.
With our decentralized servo drives (featuring power electronics directly on the motor), we bring the intelligence to where it belongs: to the machine.
- All esiMot compact drives are available in various models and can be combined with gearboxes
- Fieldbus interfaces: PROFIBUS, PROFINET, EtherCAT, CANopen, Modbus
- STO is available on all servo drives
- ATEX Zones 2 and 22 available upon customer request (hazardous areas)

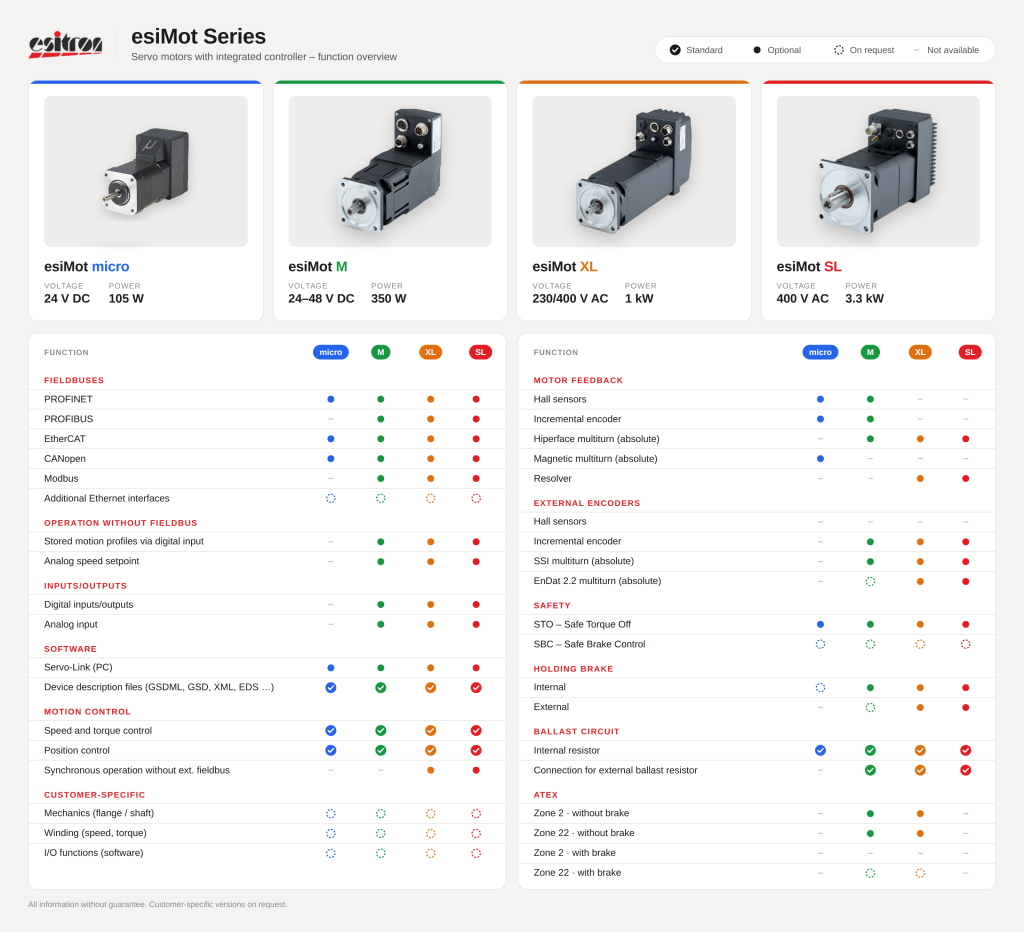

esiMot Sizes at a Glance
| Size | Rated Power | Rated Torque | Motor Power Supply | Motor Feedback | Protection Class | Fieldbus |
|---|---|---|---|---|---|---|
| esiMot micro (coming soon) | 26 – 105 W | 0,0625 – 0,25 Nm | 24 V DC | Singleturn absolute encoder | IP54 | PROFINET, EtherCAT, CANopen |
| esiMot M | 120 – 480 W | 0,22 – 1,8 Nm | 24 oder 48 V DC | Singleturn / multiturn absolute encoders | IP65 | PROFIBUS-DP, PROFINET, EtherCAT, CANopen, RS485 |
| esiMot XL | 0,78 – 1,21 kW | 2,2 – 5,8 Nm | 230 oder 400 V AC | Singleturn / multiturn absolute encoders | IP65 | PROFIBUS-DP, PROFINET, EtherCAT, CANopen |
| esiMot SL | 3,1 – 4,4 kW | 10 – 20 Nm | 400 V AC | Singleturn / multiturn absolute encoders | IP65 | PROFIBUS-DP, PROFINET, EtherCAT, CANopen |
| esiMot Hygienic (coming soon) | < 0,7 kW | < 3 Nm | 48 V DC | Singleturn / multiturn absolute encoders | IP69K | PROFINET, EtherCAT, CANopen |
Why Decentralized Servo Drives?
Since the motor, encoder, and power electronics are already integrated into the drive itself, there is no need for a separate servo controller in the control cabinet. This saves installation space in the system, minimizes the amount of wiring required between the control cabinet and the motor, and significantly shortens commissioning time. This concept is particularly beneficial for decentralized axes or in confined spaces.
